UberNios is a custom hardware/software co-design project demonstrating full-stack embedded development—from the logic gate level up to the application layer. We built a functional arcade game console on an Altera DE2 FPGA board.
Technical Architecture#
The system uses a system-on-chip (SoC) approach, instantiating a Nios II soft-core processor alongside custom hardware peripherals in the FPGA fabric.
1. Hardware Design (VHDL/Verilog)#
- VGA Controller: Custom logic to drive the VGA DAC, handling timing signals (HSYNC/VSYNC) for 640x480 output.
- Audio Codec Interface: Direct hardware interface to the Wolfson WM8731 codec for lag-free sound effects.
- Input Controllers: Drivers for PS/2 keyboard/mouse and on-board push buttons.
2. Software Layer (C / Assembly)#

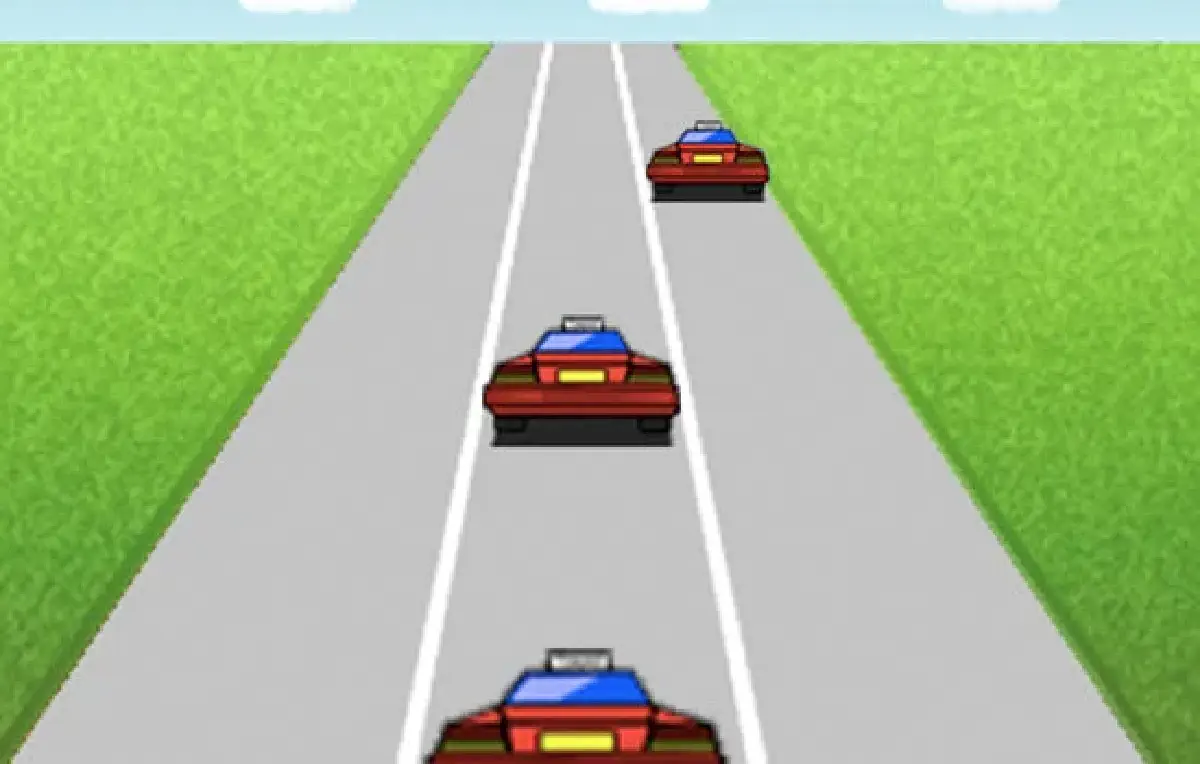

- Graphics Engine: Implemented a “2.5D” perspective engine. It used efficient sprite scaling and shifting to simulate depth, optimizing for the Nios II’s limited clock speed.
- Render Loop: Optimized drawing routines to only redraw “dirty pixels” (changed regions) rather than full frame buffering, ensuring high frame rates (60 FPS).
- Audio Engine: Utilized hardware timers and interrupts to feed audio samples to the FIFO buffer, preventing CPU stalling.
3. Multiplayer Networking#
- Ethernet Driver: Wrote a raw packet driver for the DM9000A controller.
- Protocol: Simple custom protocol to synchronize game states between two FPGA boards connected via Ethernet, allowing for head-to-head racing.
Outcomes#
The project successfully demonstrated the power of hardware acceleration for specific tasks (graphics/audio) while keeping game logic flexible in software.
Tech Stack:
- Hardware: Altera DE2 Development Board (Cyclone II FPGA)
- HDL: VHDL, SystemVerilog
- Soft Core: Nios II
- Language: C, MIPS Assembly
- Tools: Quartus II, SOPC Builder
